Single Cylinder Steam Engine

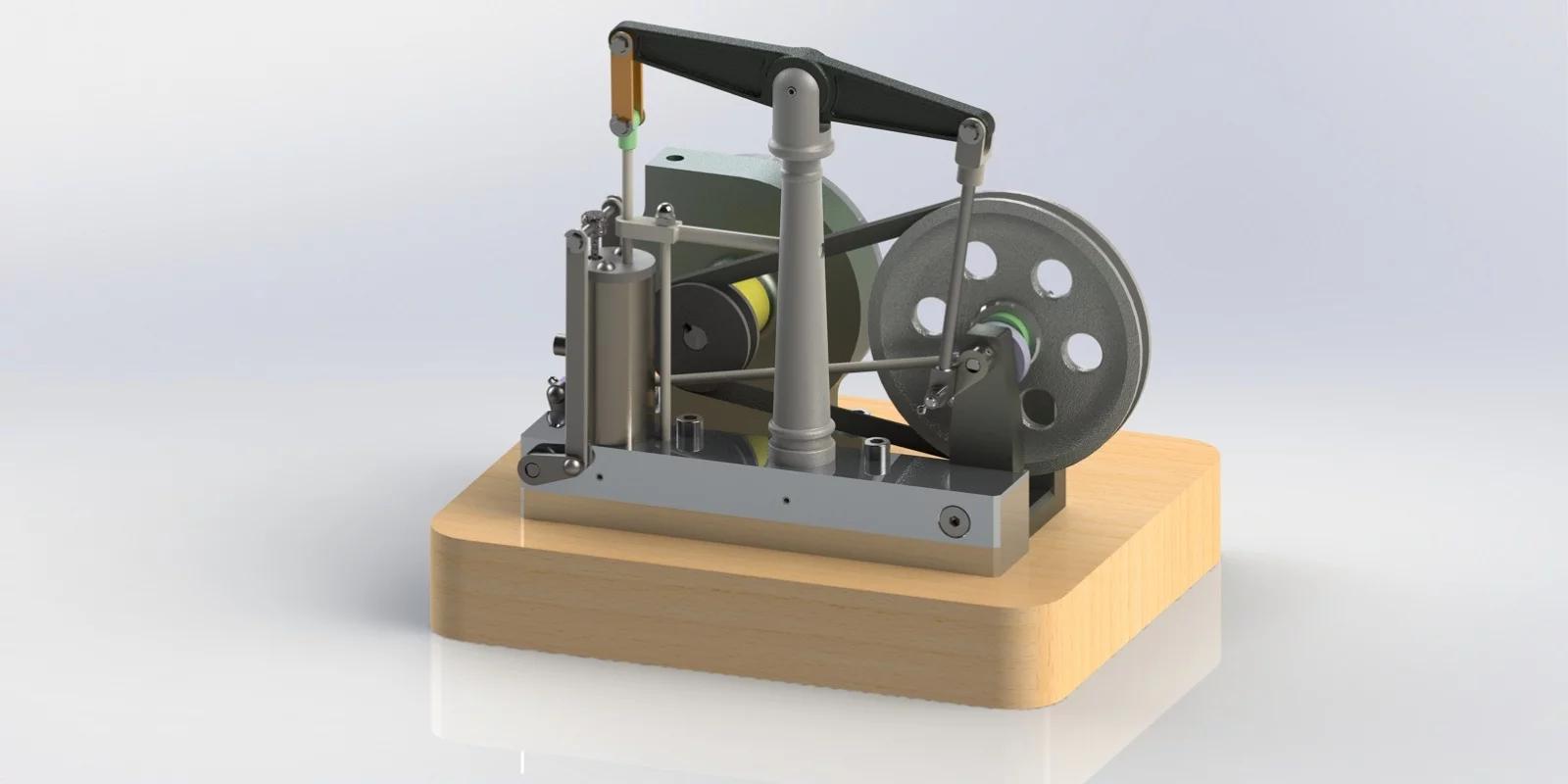

Single cylinder steam engine connected to a centrifugal pump. Created with SolidWorks 2019.

Details:

• The folder contains all the parts (SLDPRT), the subassemblies (SLDASM) and the main assembly (in SLDASM, eDrawing, IGES and STEP formats).
• All 3D objects can be modified using SolidWorks 2019 and above.
• The main assembly contains 83 parts.
