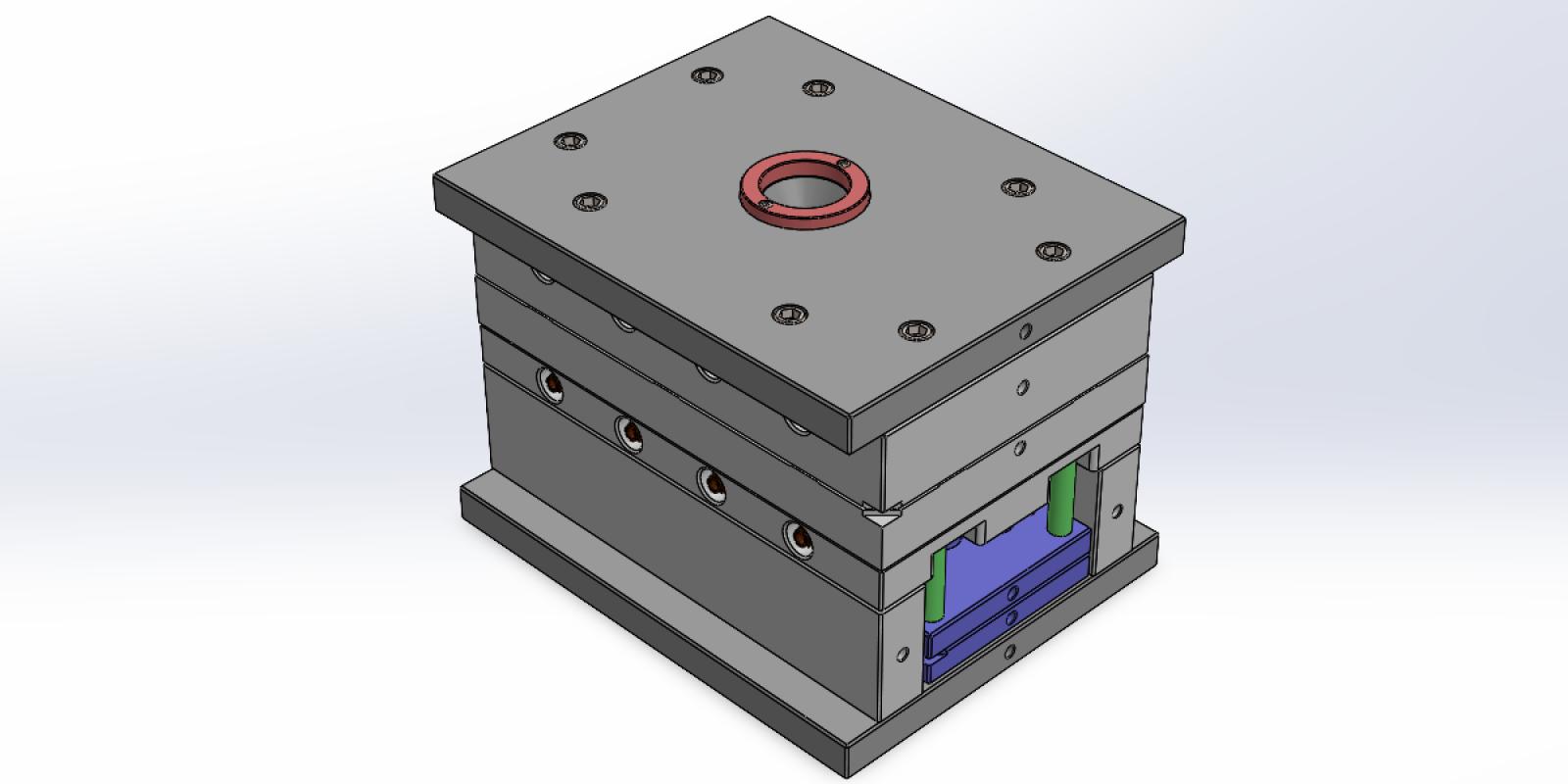

Pizza Saver Injection Mold
Description
Pizza Saver Injection Mold - eight cavities - Cold Runner - Created with SolidWorks.
Details:
- The package contains all the parts including the used toolbox components (in SLDPRT 2024) and the main assembly (in SLDASM 2024 and STEP formats).
- The package includes the PDF file of the 2D drawings, the excel file with the mold's specifications, the cooling channels and the plastic part.
Note: Should you require any additional information, please do not hesitate to contact us.
Specifications:
| Part dimensions (LxWxH) | 43.4x45x35.6 mm |
| Part weight (one cavity) | 2.8 g |
| Runner weight | 27.8 g |
| Total shot weight | 50.2 g |
| Part material Material MFR |
Polypropylene 15 g/10min |
| Shrinkage factor | 1.5% |
| Mold dimensions (LxWxH) | 366x339x456 mm |
| Locating ring diameter | 100 mm |
| Mold weight | 340 kg |
| Number of cavities | 8 |
| Number of injection locations | 1 |
| Runner type | Cold runner |
| Cycle type Required Tonnage |
Auto-drop/ Auto-degating 90 Tones |
| Estimated cycle time | 30 seconds |
Comments
Login to add comments!
Regular License
44.99Full source code
Exclusive on Porizm
Store
Free support through
Email/Skype
Future product
updates
Price is in US dollars and excludes tax.
Information
| Category | SolidWorks |
| Publisher | Kazem Moussa |
| Published | 11 months ago |
| Last update | 7 months ago |
| Files included | .SLDPRT .SLDASM .STEP .PDF .XLSX |
